VET 100 Circuit Analysis Tool

3920

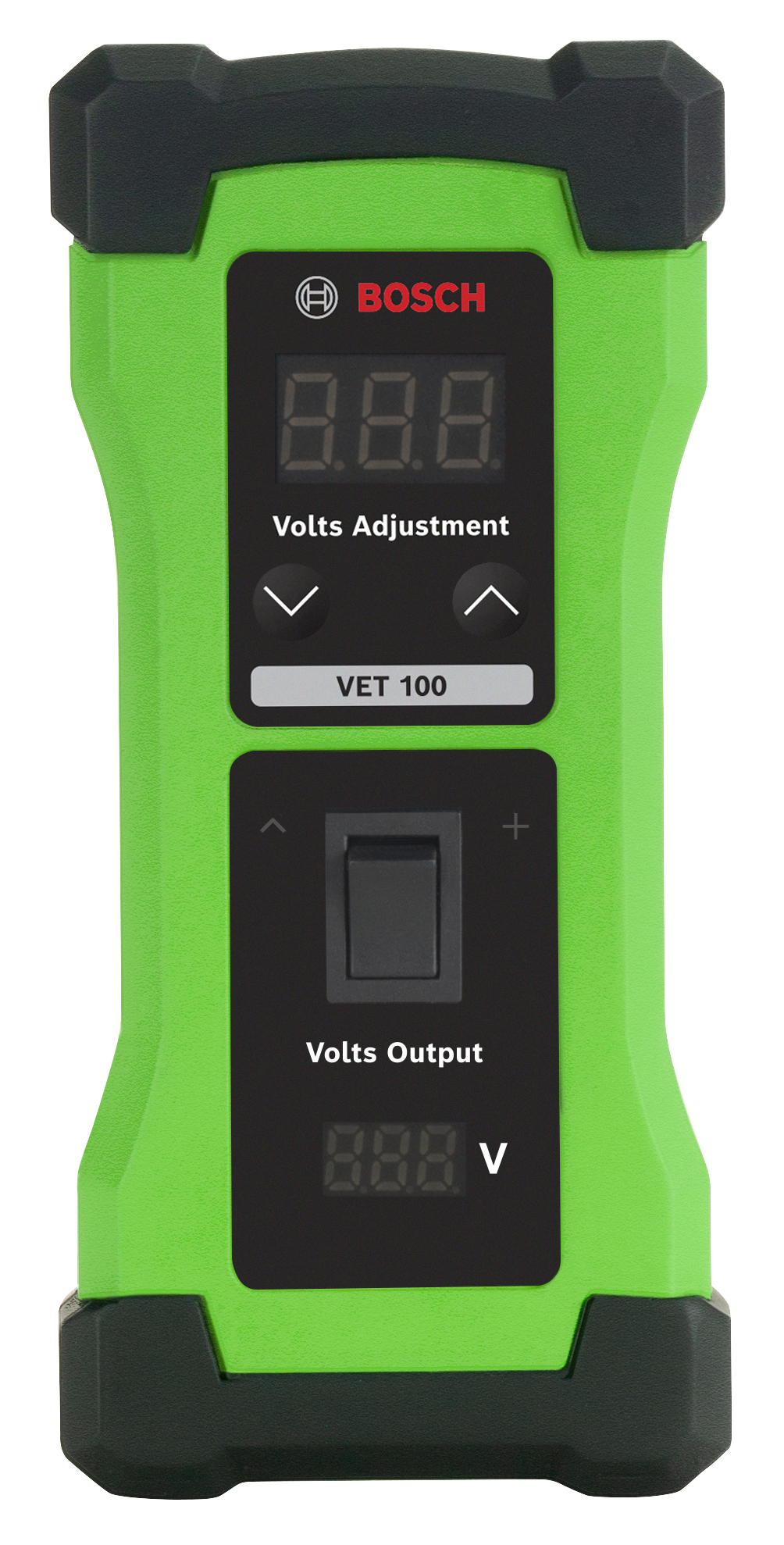

The Bosch VET 100 Circuit Analysis Tool is perfect for data stream analysis using your scan tool. With quick and easy setup, you can identify faulty sensors, wiring harnesses, and/or issues with PCMs as the next step after code/ no code scan tool diagnostics. The tool helps troubleshooting accuracy by pinpointing circuit diagnostic component failure.

Read More
Read Less
Features
Save time and quickly identify failed circuit component, wiring harness or ECM
Use with any scan tool during data stream analysis
Simulates the sensor you are diagnosing by inputting a determined voltage at the sensor location
Allows input voltage from .5VDC - 7VDC in .5VDC increments
With scan tool, verify if correct voltage is being applied to circuit
Bypass sensor to send desired voltage back to PCM

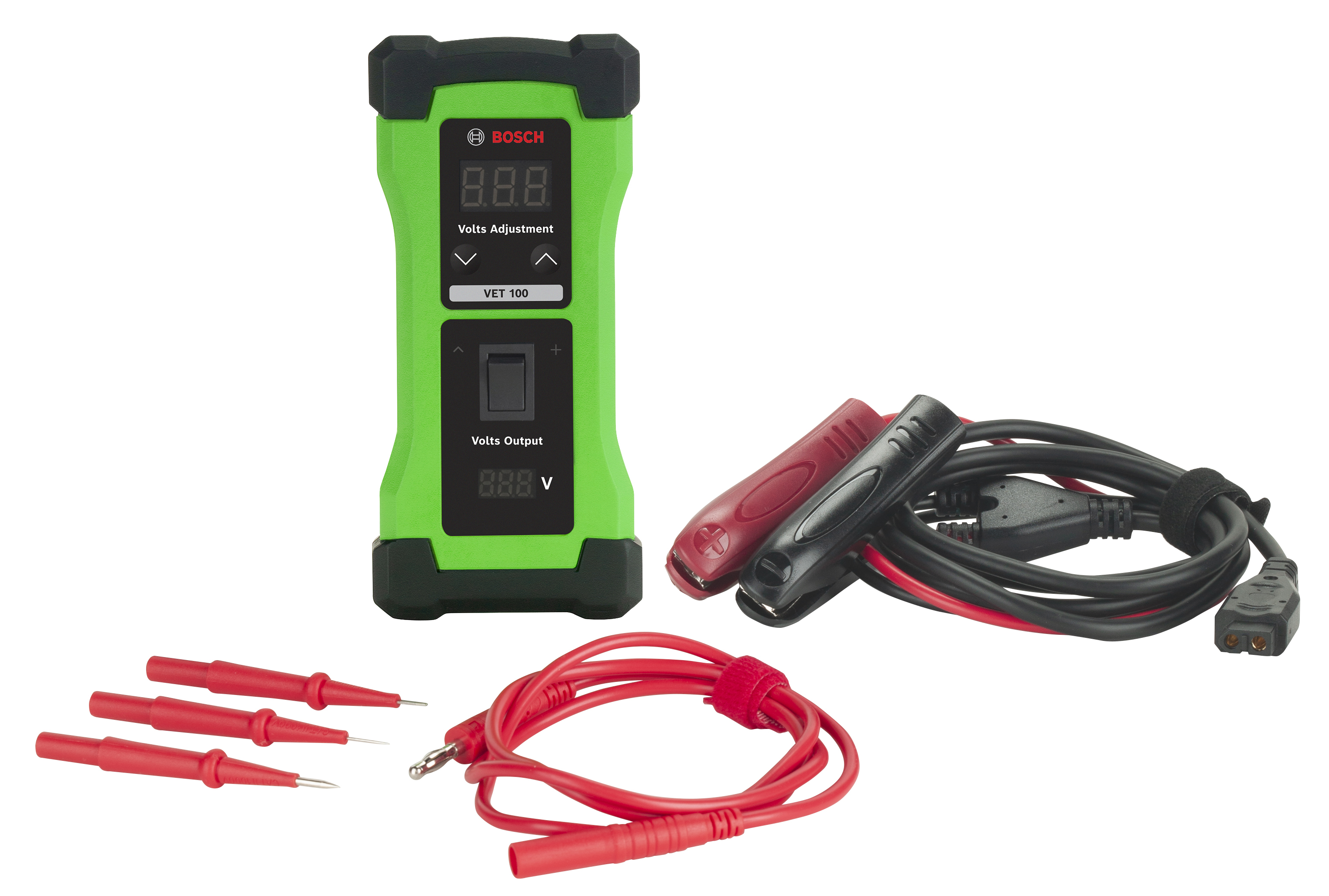

Kit Contents
Circuit analysis tool
6 ft. power cable
1m probe tip cable
2mm flat terminal
2mm probe tip
Pin tip probe
user manual
